Boilers
- Designed to accommodate requirements for both small & large diameter installs.

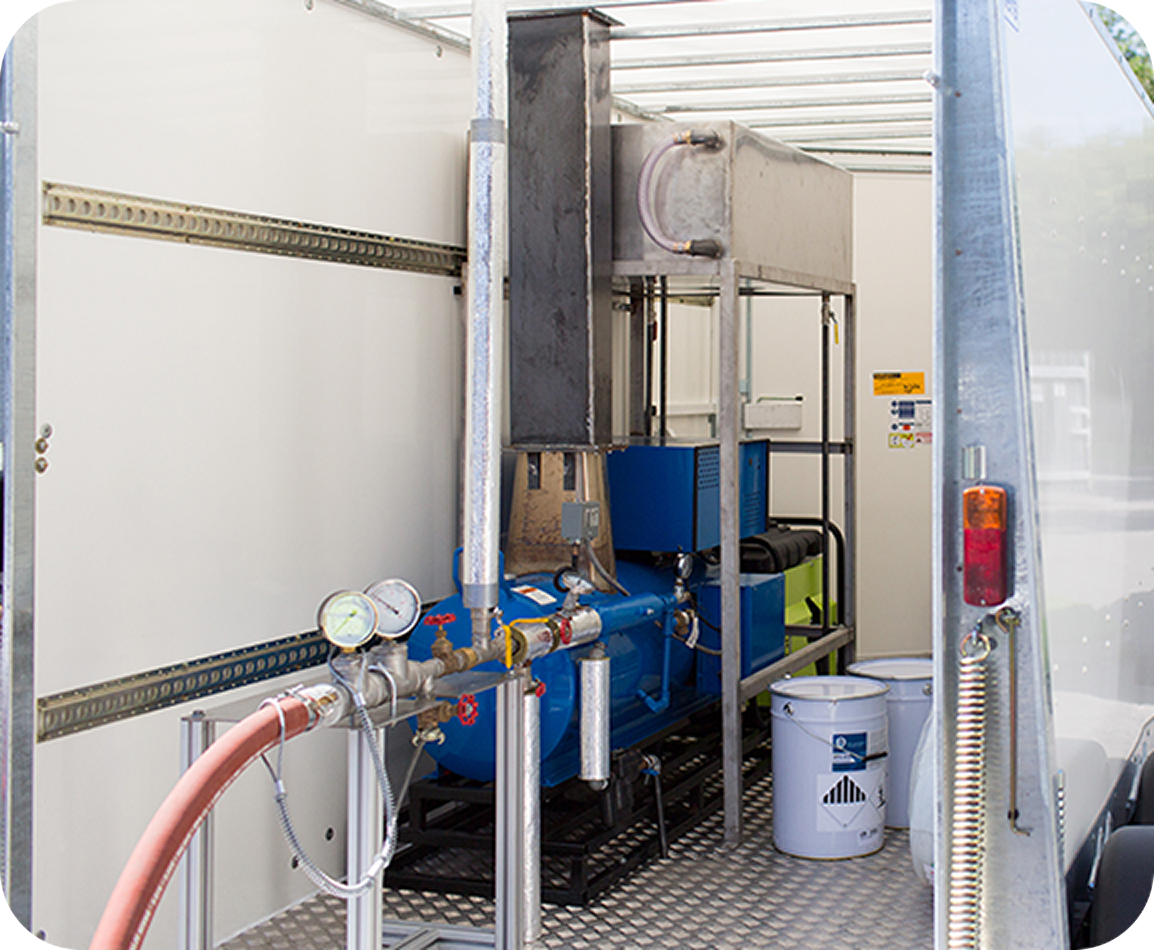

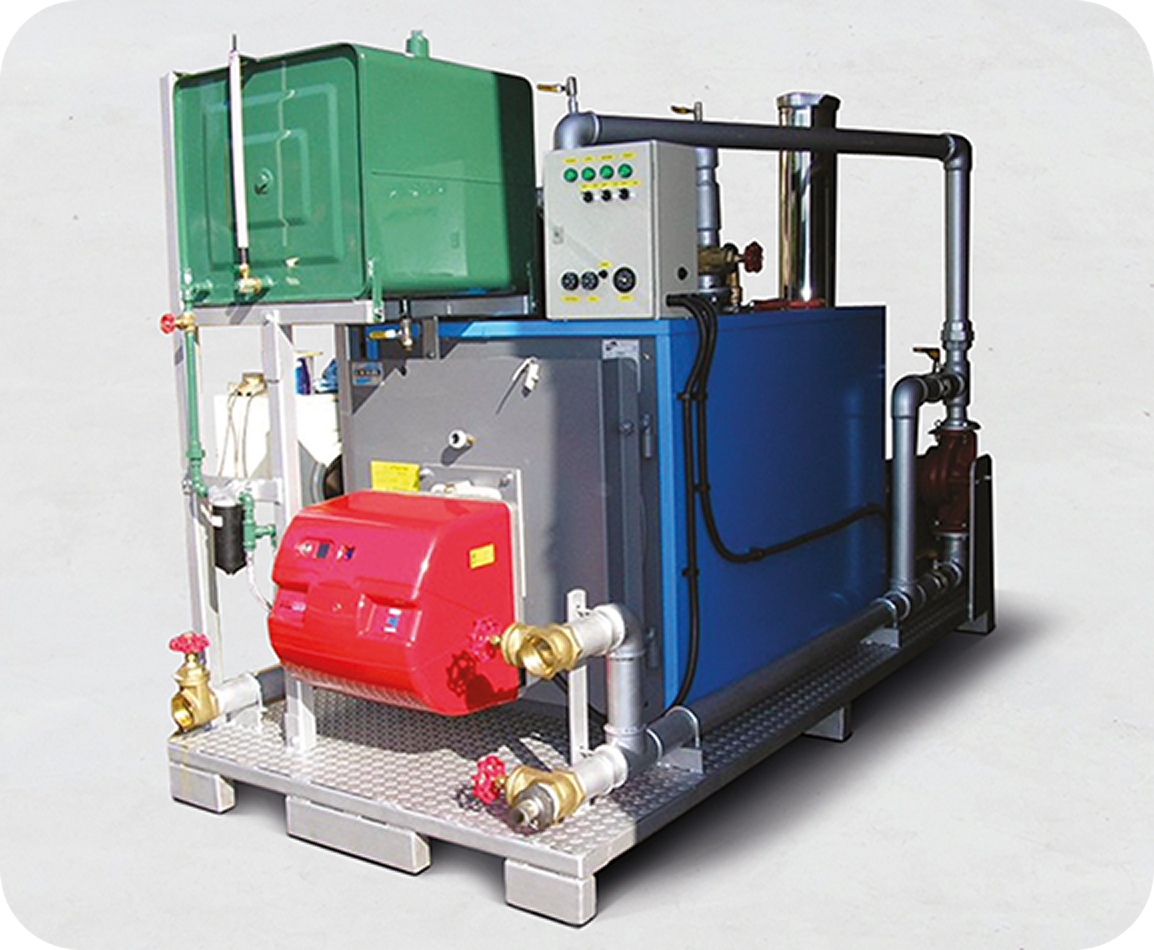

HOT WATER BOILERS

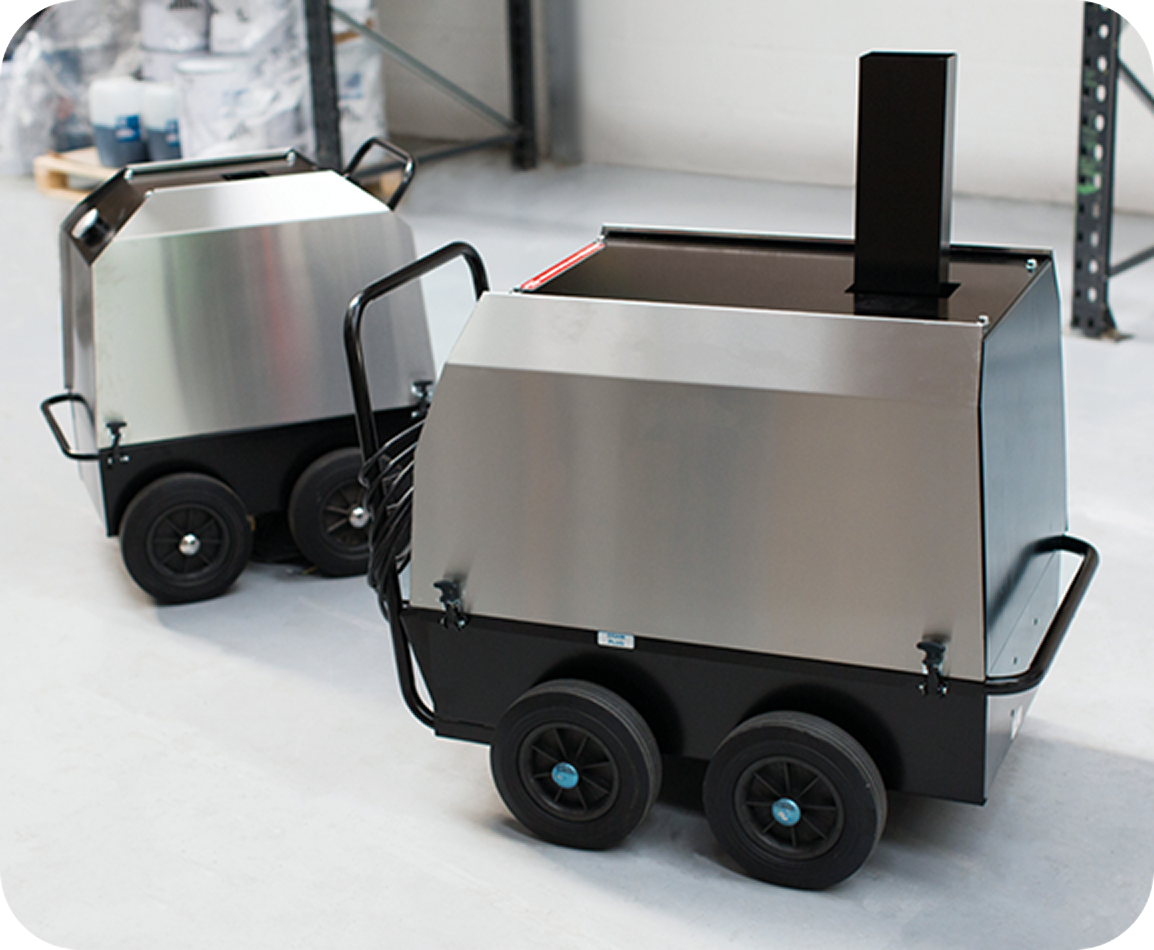

RSM Lining Supplies’ hot water boilers are designed for efficiency and portability, offering solutions from compact, wheeled units to high-capacity trailer installations for diverse applications
RSM Lining Supplies’ hot water boilers are engineered for maximum efficiency and portability, making them suitable for a wide range of applications. Whether you require a compact unit with integrated wheels for easy transport or high-capacity systems installed in trailers, we have the right solution.
Characteristics
- Available in 200,000 BTU to 4,000,000 BTU capacities.
- Ideal for curing up to 200 meters of 1200mm diameter.
- User-friendly design for hassle-free operation.
- Options for truck or trailer installation based on customer requirements.
- Auto blowdown system and integrated water softener & dosing plant.
- Pressure Reduction Valve (PRV) system for high-pressure steam generation to boost efficiency.
- Auto TDS system for enhanced maintenance and reliability.

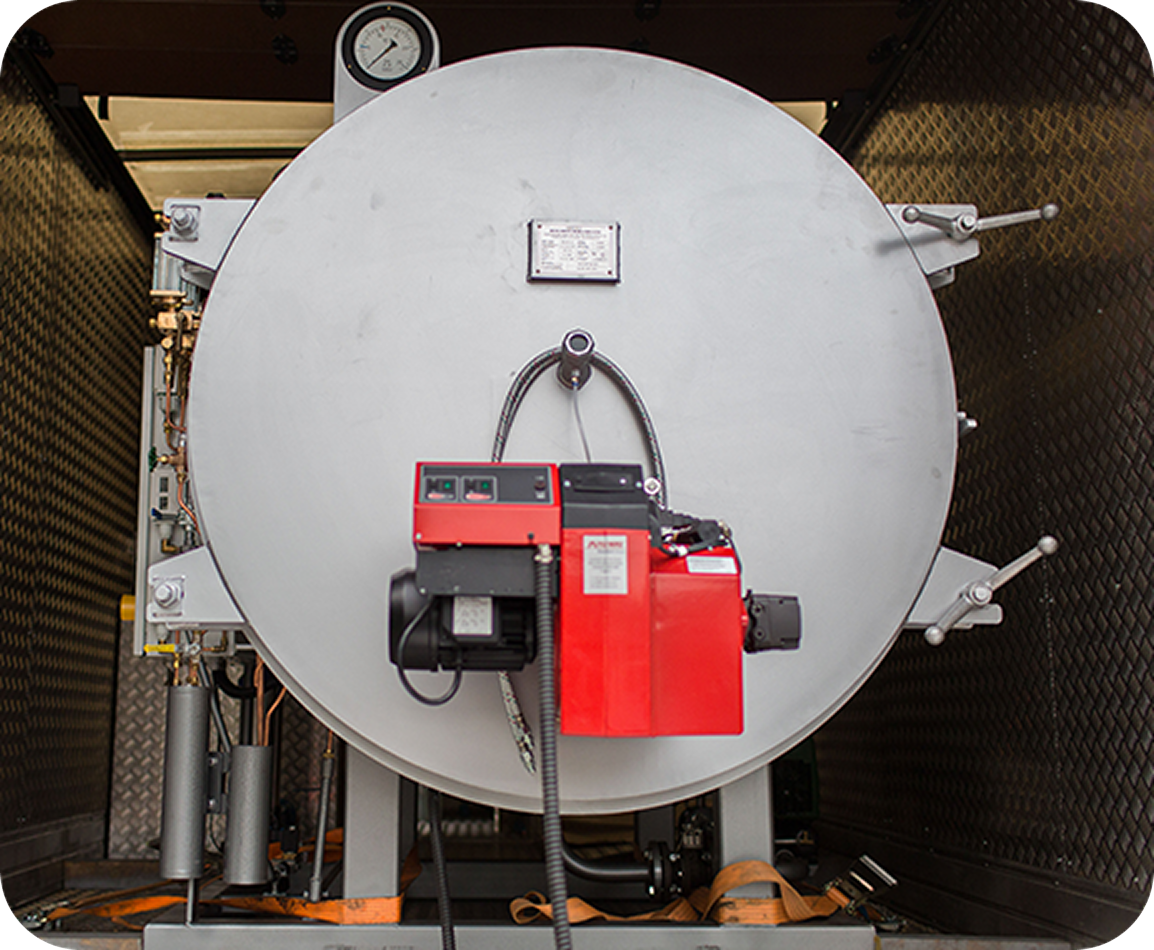

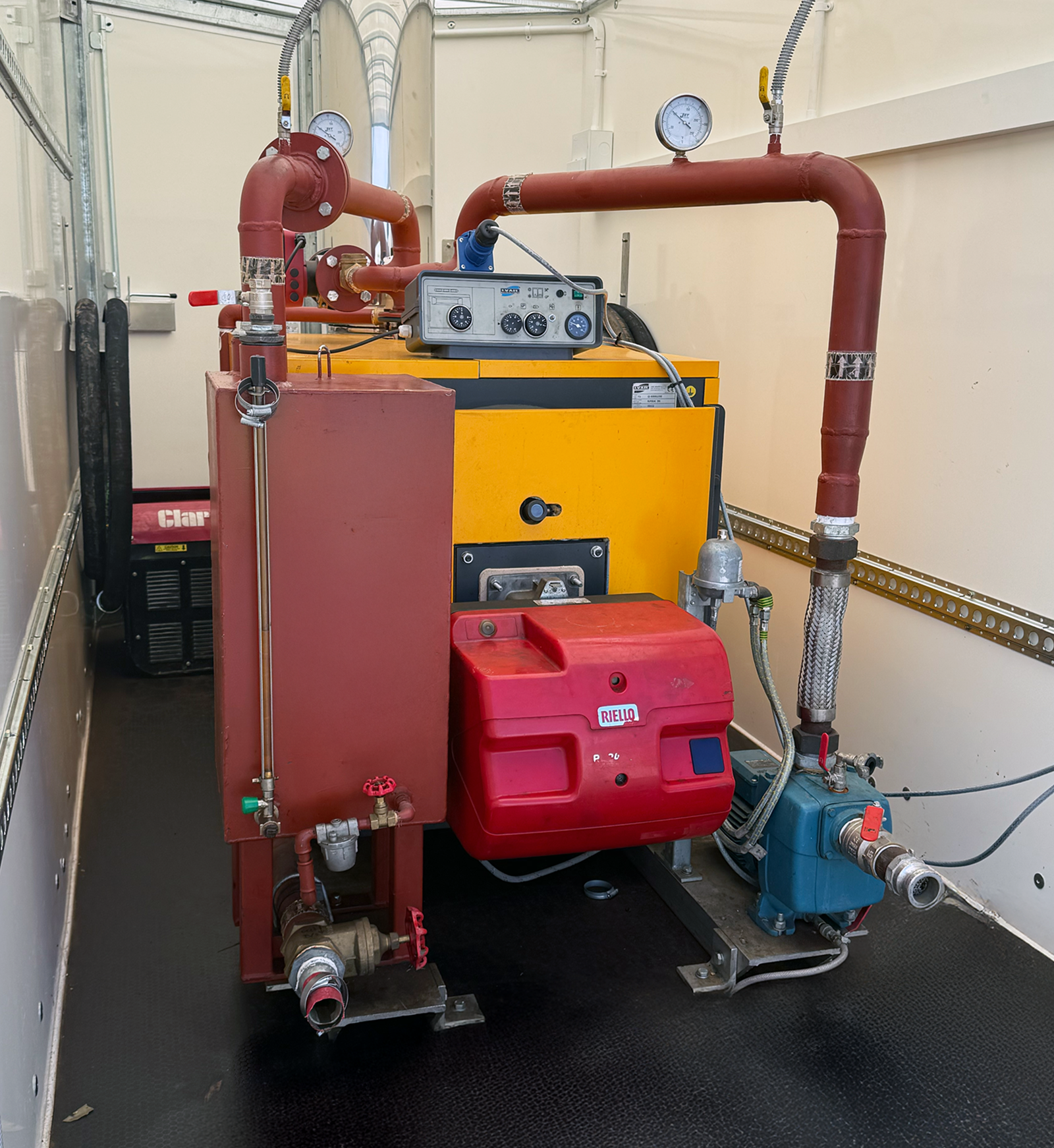

STEAM BOILERS
RSM Lining supplies’ steam boilers deliver high-efficiency curing with variable steam flow control, generating steam up to 240 degrees for precise and consistent results
RSM Lining Supplies’ steam boilers are built for high-performance curing, featuring advanced variable steam flow control for precision. These high-efficiency systems generate steam up to 240°C, ensuring fast, reliable, and consistent results across various applications. Designed for durability and efficiency, they optimise the curing process, reducing downtime and enhancing productivity.
Characteristics
- Available in 630,000 BTU and 4,000,000 BTU variants.
- Variable steam flow control for optimised performance.
- Integrated PRV system allows operation at high pressures for improved efficiency.
- Fully customisable fit-out options for truck or trailer installation.
- Optional laminate temperature recording and steam condensers for process monitoring.
- Digital control system with auto steam saturation adjustment.
other products you might like...
Frequently asked questions & answers
Can’t find the answer to your question? You can always Contact Our Team of Experts for a chat!
What boiler systems do you supply for CIPP curing?
We supply steam boilers built specifically for CIPP work, giving fast, controllable heat for curing liners in a wide range of pipe sizes without dragging in oversized industrial boiler plant.
How does steam curing compare to hot water or ambient curing?
Steam curing is generally faster and more cost‑effective than traditional hot water methods, reducing installation and cure time while also cutting down on water handling and disposal.
Do you have boiler options for smaller contractors?
Yes, we offer boiler packages to suit both smaller relining crews and larger civil contractors, so you can match capital spend to job size and utilisation rather than buying something you don’t need.
Can you help with setup, maintenance and compliance on boiler systems?
We provide guidance on installation, safe operation and routine maintenance, and can arrange repairs or upgrades through our service network when that inevitable breakdown lands in the middle of a project.
