Patching & Junctions
Patching and junction products provide trenchless repair options for localized damage or connections within pipelines. These products allow for quick, effective point rehabilitation without the need for full-length relining.
- No matter which method you are using, we have Patching & junctions to suit your project.

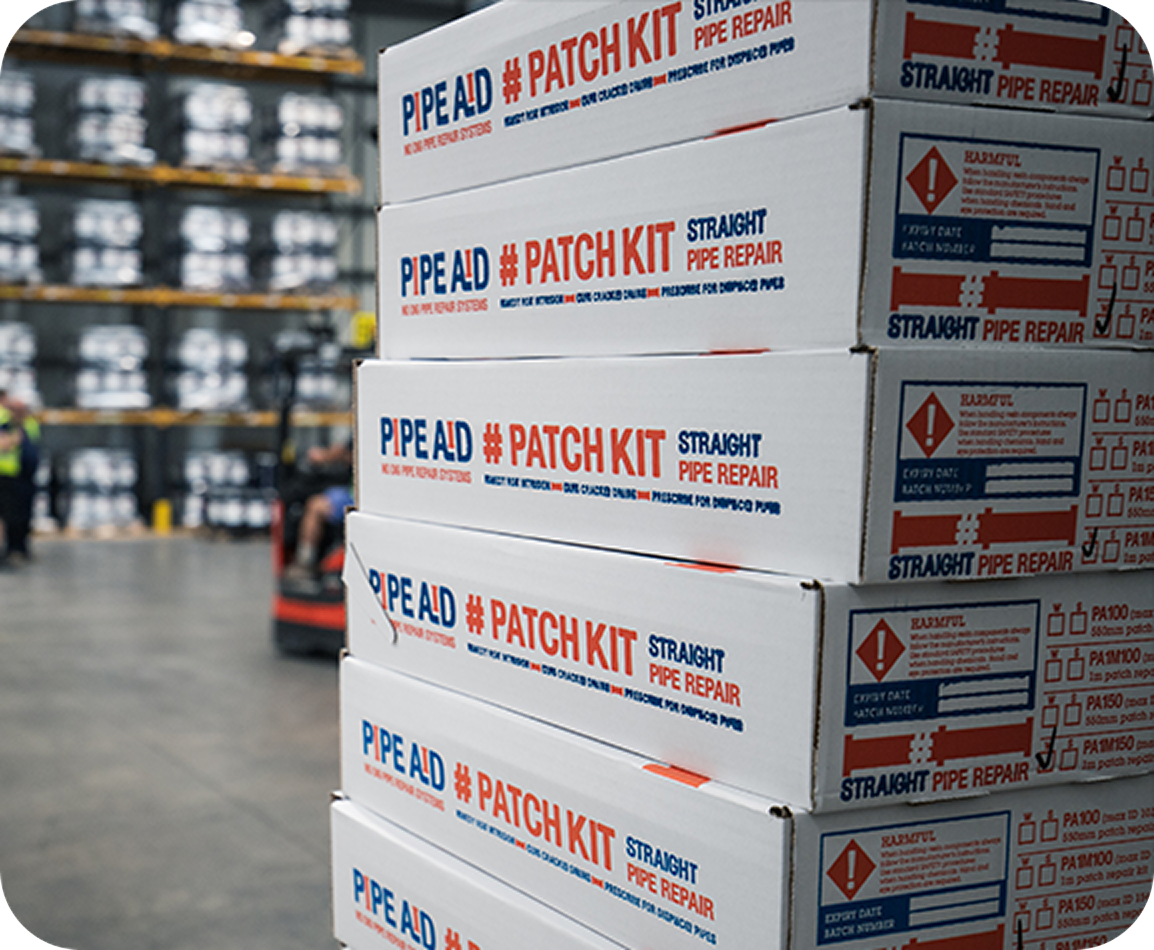

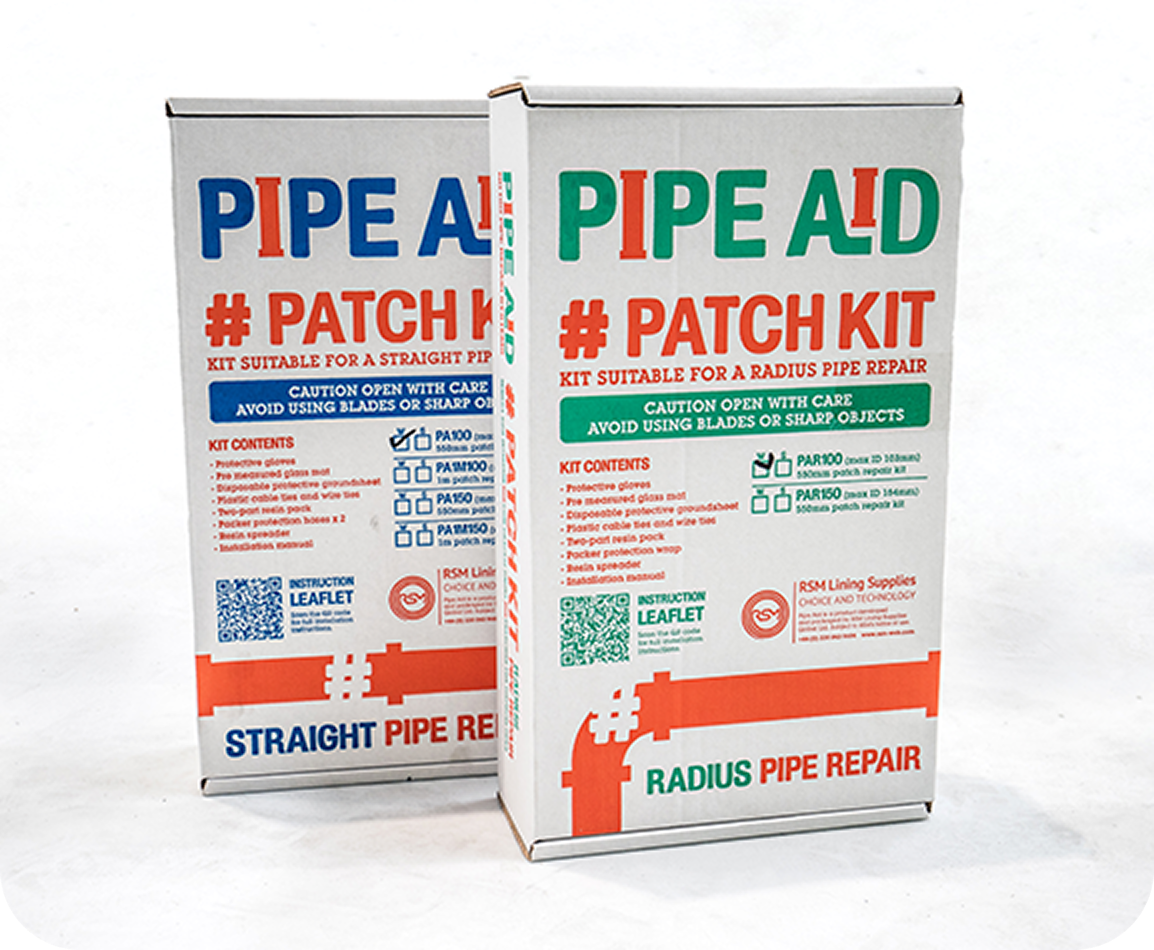

PIPE AID - PATCH KITS
Introducing Pipe Aid Patch Kits, your go-to solution for repairing damaged pipes quickly and efficiently. These kits offer a permanent and waterproof fix, eliminating the hassle of excavation.
Say goodbye to costly repairs and hello to a reliable, easy-to-use option that keeps your plumbing system running smoothly.

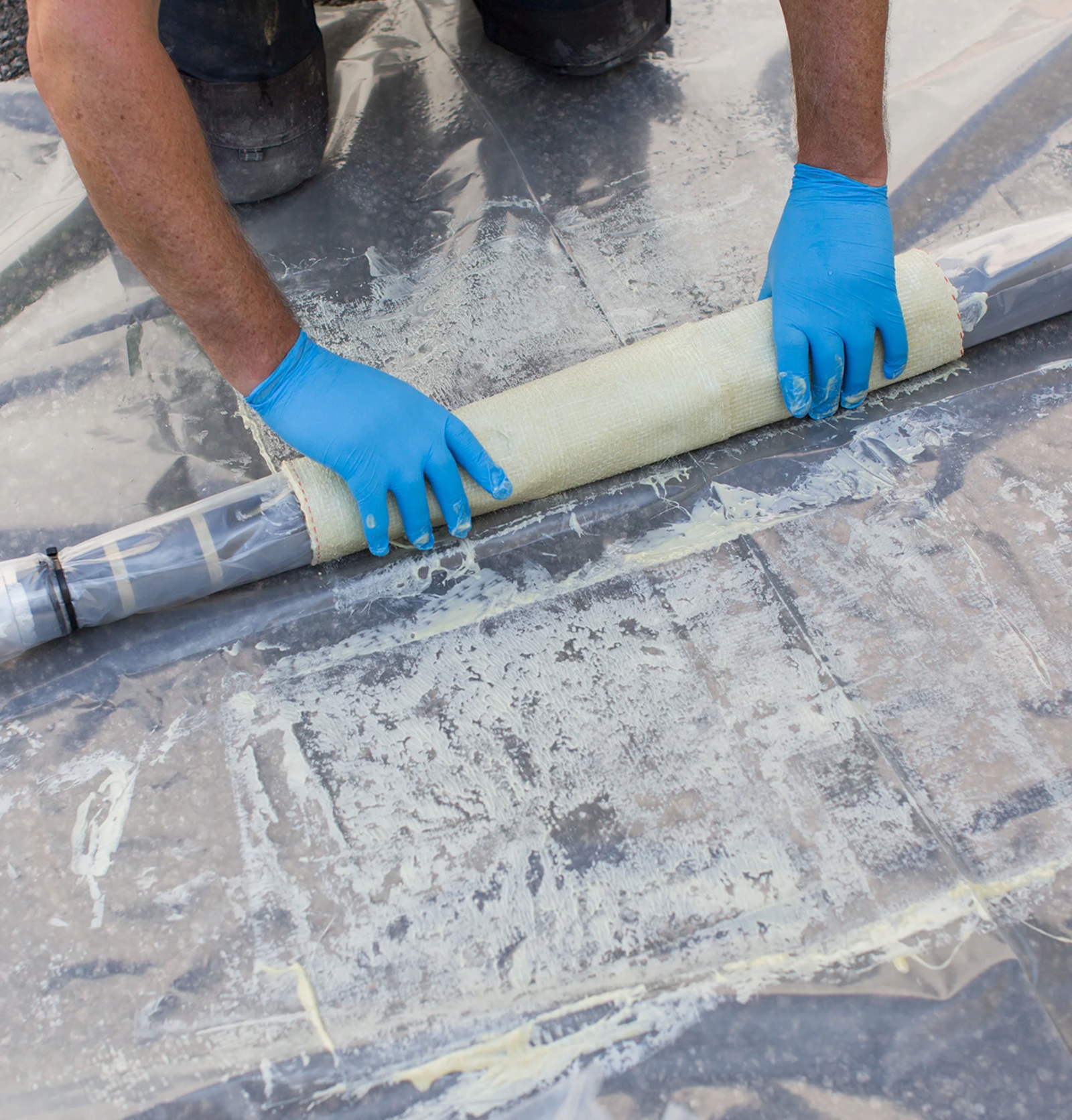

Pipe Aid Patch Kits provide a permanent and waterproof solution for repairing damaged pipes without the need for excavation. These kits offer a permanent and waterproof fix, eliminating the hassle of excavation. Additionally, they are suitable for repairs on pipes with bends up to 90 degrees, specifically for 100mm (4in) and 150mm (6in) diameter pipes.
Characteristics
- Pipe Aid is a high performance no dig pipe solution, using CRF glass matting.
- Permanent structural repair used across all of Australia’s water authorities.
- Can be purchased with RSM or Trelleborg’s epros® silicate resin.
- Highly resistant to chemicals and abrasion.
- Provided pre-measured and cut to remove any human errors in your installation.
- All consumables supplies for a plug and play patch repair.

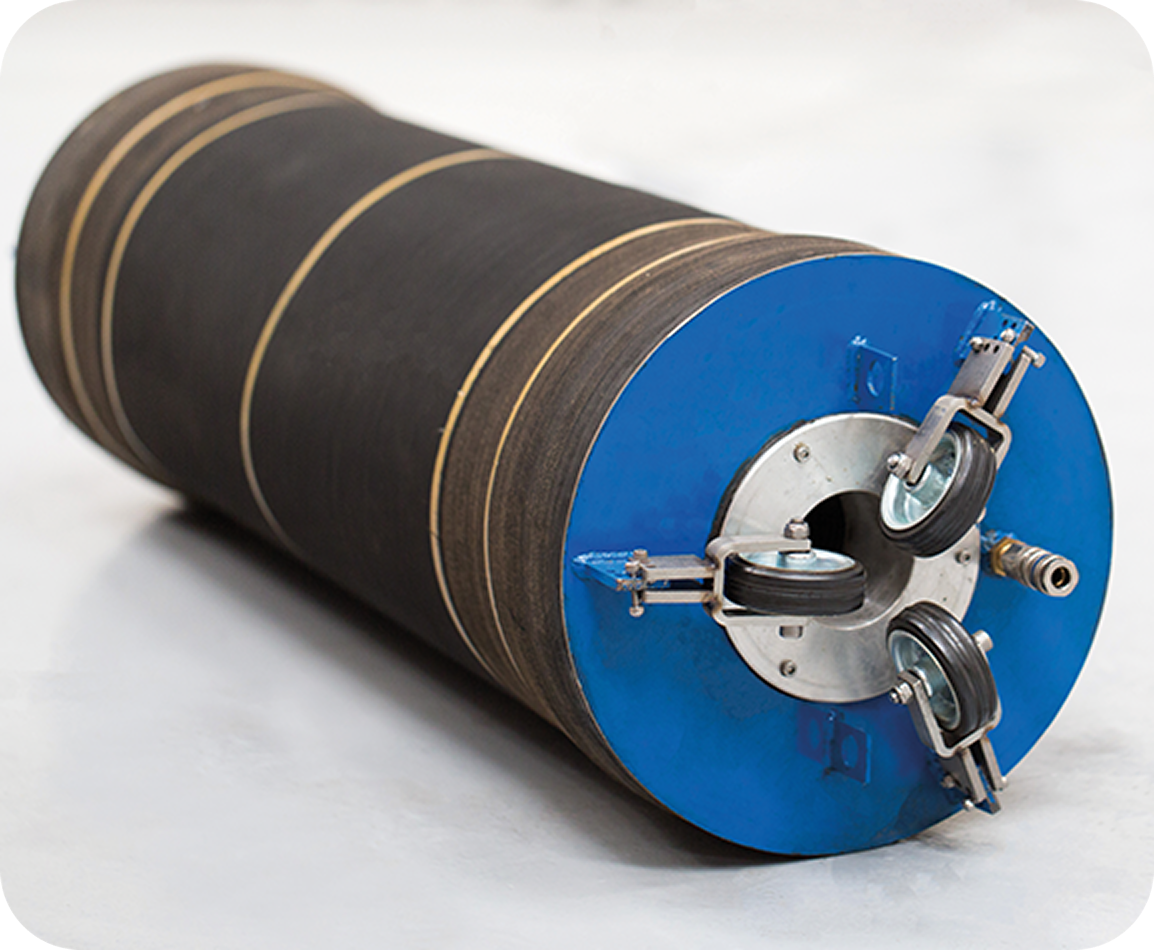

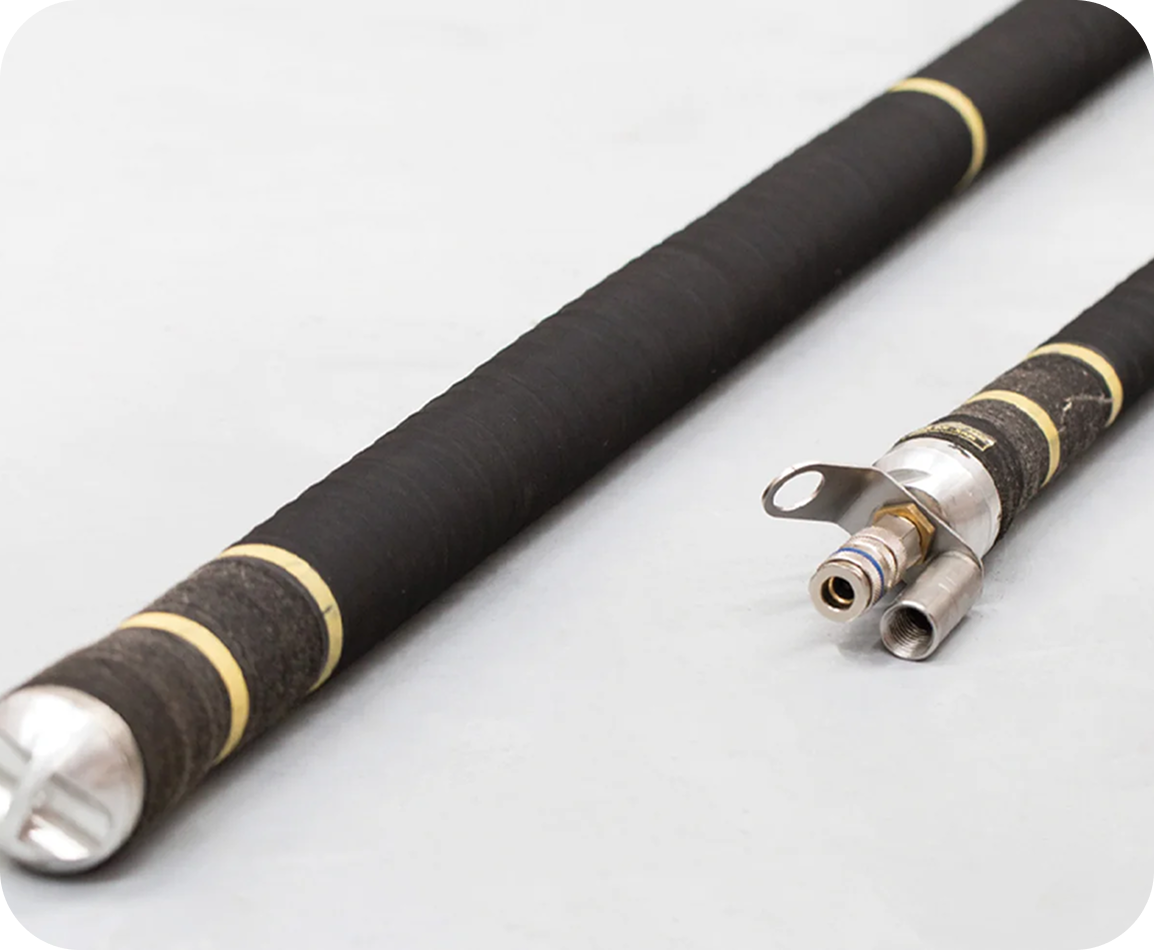

PACKERS
Packers are vital components in point repair systems, only the right packer will create leak-tight fixes on damaged pipes. RSM Lining Supplies has been developing point repair packers since our inception, focusing on flexibility and long lasting results.
Our list of packers alone would fill up a website, so reach out to find out about them.
RSM Lining Supplies provides packers that handle pipes from 30mm through to 2400mm. We stock a complete range of: Lateral (Straight) Repair Packers, Multi-Bend Radial (Bendy) Packers, Flexible Wheeled Bypass Packers, Pillow Packers, Pipe Stoppers and Plugs, Dead End Packers, Top Hat Packers.
Characteristics
- Each packer has it’s own characteristics and specifications.
- Most of our packers handle multiple diameters within their range.
- RSM Packers available as well as well known European brands.
- Constructed with cord reinforced and vulcanised rubber.
- Circular, oval, egg and flat bottom shaped packers for every application.

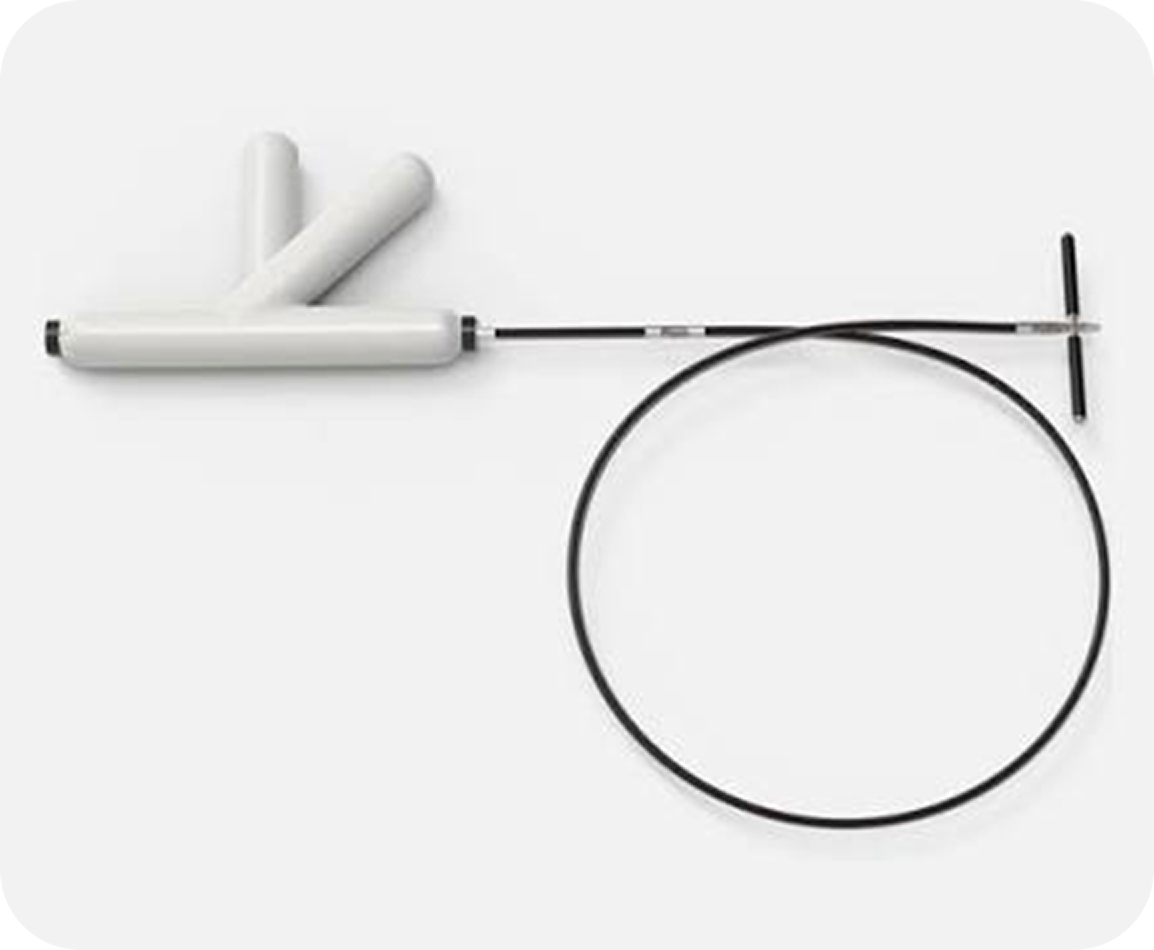

Junction Repairs
Introducing the RSM Junction Liner System, an advanced solution for sealing in relined pipes.
Working with the Bladder, it ensures a secure connection between the main pipe and the lateral at 45° or 90°-degree angles, and can be cured ambiently or with heat.
The RSM Junction Liner system is a connection system that strengthens and seals the joints of relined pipes. Unlike other systems, there is no need to attach a third line through the branch arm. The junction system uses vacuum pressure to seamlessly repairs junctions in any situations, included where you only have access from the branch.
Characteristics
- Available for 90° and 45° junctions, as well as squares and Double Y.
- Side and Square shooters available for branch access only repairs.
- Bladders and liners available for every combination of main and lateral pipe diameters.
- Fibreglass and Felt liners available for any application.
other products you might like...
Frequently asked questions & answers
Can’t find the answer to your question? You can always Contact Our Team of Experts for a chat!
What patch repair systems do you offer for isolated defects?
We supply sectional repair systems using glass fibre and silicate resin, allowing you to fix specific cracks, holes or root ingress without relining long lengths of pipe or digging up the street. Depending on the project requirements you may need to use our market leading Delta Epoxy system.
Can your patch systems handle junctions and 90‑degree bends?
We offer specialised patching setups and packers for junctions and bends, including radius glass systems that expand cleanly around 90‑degree changes in direction. We recommend coming into one of our depots for glass patch training before taking these jobs on.
Are your patch repairs considered permanent, or just temporary fixes?
Our patch systems are long-life designed to Watermark and WRc standards, creating watertight structural repairs and are already in service across a wide range of sewer and drainage networks.
Do your junctions cover 45s and 90s?
We have all the connection sizes available for residential and commercial pipes, with 150mm, 100mm, 90mm, and 70mm junctions covered in both 45 and 90 degrees.
Does your system require a line attached to the branch arm?
No, our system does not require branch access to pull the branch arm up. We do recommend camera access to see the junction inflating into place. We use our vacuum system to control the junction bladder.
What styles of junction repairs are available?
We provide both felt and glass reinforced junction repairs to work with epoxy, UV, and silicate resin respectively. We have long junction felt and glass fibre liners, for standalone junction repairs as well as short liners for covering over reinstated junctions.
